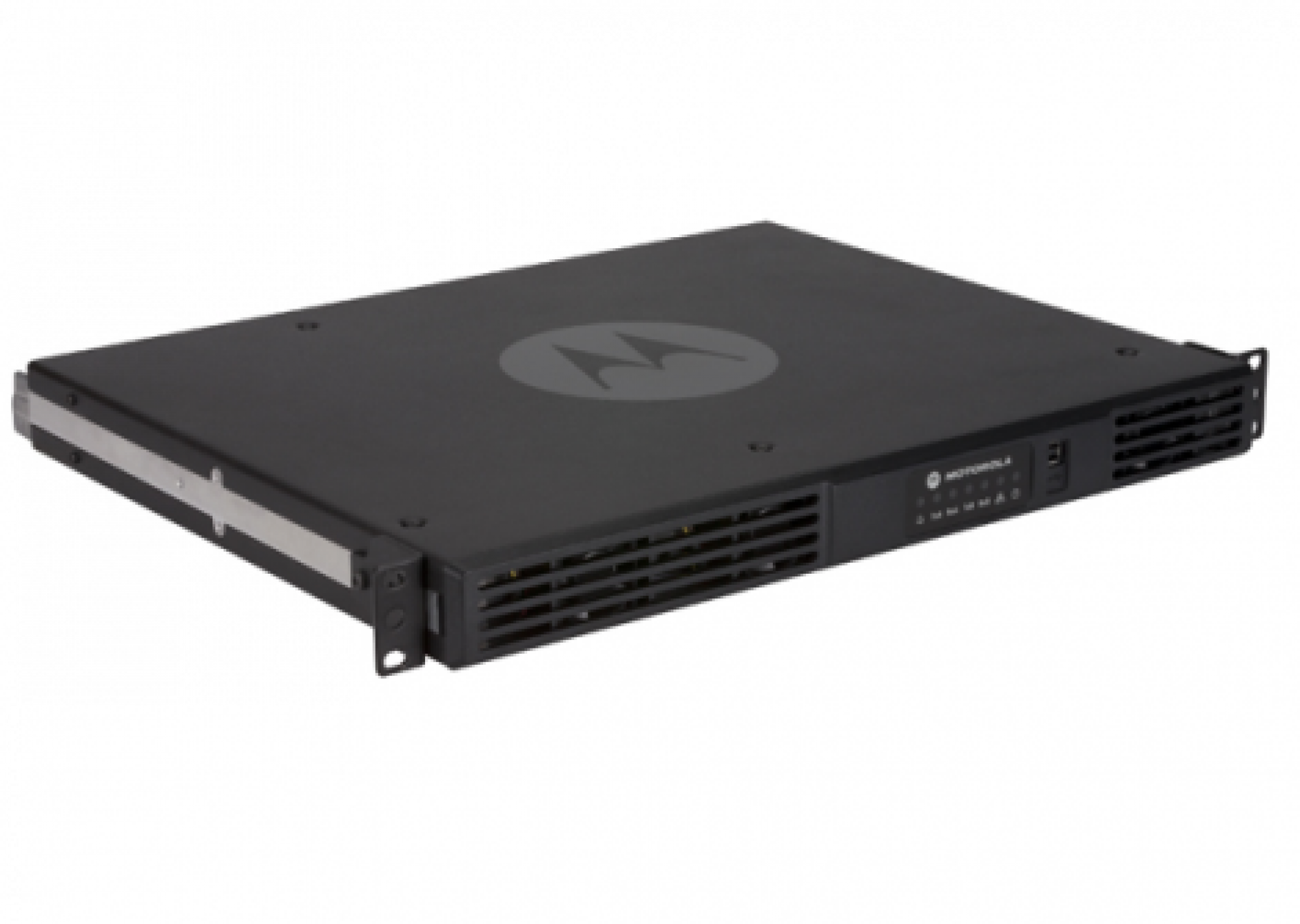

Motorola SLR5500 Repeater UHF

MDR10QCGANQ1AN

Basic Model Includes:
• Rack-mount repeater
• Power cable
NOTE reminder: The Standard Warranty is 24 months.

Technical Data:
• VHF (136-174MHz); UHF1 (400-470MHz);
• 64 channel capacity
• 1-50 Watts power
• 100% duty cycle at full power
• 1U form factor
• Weight 19 lbs (8.6 kg) - Dimensions (H x W x D) 1.75 x 19 x 14.6 in (44 x 483 x 370 mm)
• No self quieting frequency requirements

Functions:
• Operates either in analogue or digital mode

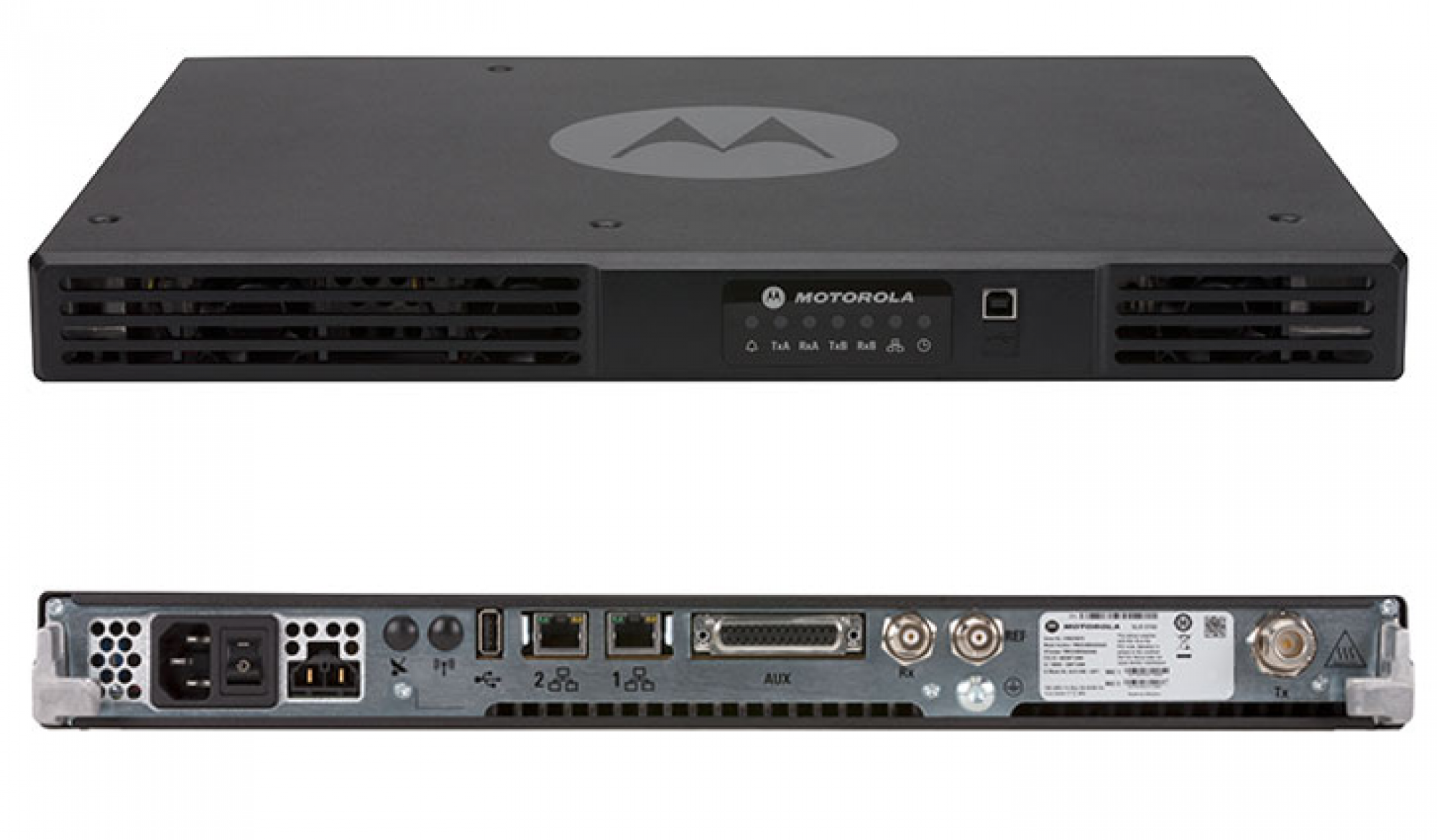

• Clear LED indicators on front panel indicate operating mode
• Repeater disabled
• TX/RX status per slot
• Rack or wall-mount
• Integrated power supply
• Interface for battery back-up and charge
• Repeater Diagnostics and Control
• Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus
Analog Conventional, MPT 1327 compatible
• Application developers kit (to enable 3rd parties to develop applications which interface to the repeater)
